The Barbados HARP Gun, officially known as the High Altitude Research Project (HARP), was an ambitious and innovative Cold War-era experiment conducted during the 1960s. It was a collaborative effort between the United States and Canada aimed at testing the limits of artillery for use in space research. Though ultimately discontinued, HARP represents an intriguing chapter in the history of both space exploration and military research, with its audacious goals, groundbreaking technology, and its lasting influence on later space programs.
Origins of the HARP Project
The HARP project was spearheaded by two key figures: Dr. Gerald Bull, a Canadian engineer and expert in ballistics, and Dr. Charles Murphy, a U.S. scientist working at the Pentagon. Their joint vision was to develop a method for launching objects into space at a fraction of the cost and complexity of traditional rockets. By utilizing giant artillery pieces, they aimed to fire satellites, payloads, and research equipment into suborbital and eventually orbital trajectories.
The idea behind the project came at a time when Cold War tensions were high, and both superpowers, the U.S. and the Soviet Union, were vying for supremacy in space. HARP was seen as a cost-effective way to complement traditional rocket launches, which were expensive and complex.
Why Barbados?
Barbados, a small island nation in the Caribbean, was chosen as the primary testing site for several reasons:
- Geographic Location: Its proximity to the equator made it an ideal launch site for testing, as objects launched from near the equator could take advantage of the Earth’s rotational speed to achieve higher velocities.
- Stable Weather: Barbados has relatively consistent weather conditions, minimizing launch delays due to adverse weather.
- Isolated Testing Grounds: The island’s location in the Atlantic Ocean meant that test projectiles could be fired over large, unpopulated areas of water, reducing risks to human safety and property.

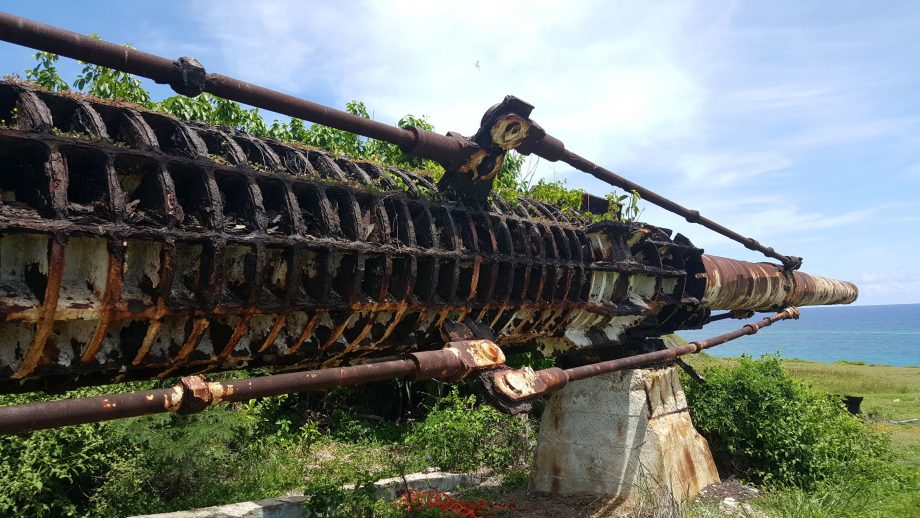

The Design of the Barbados HARP Gun
The heart of the project was the HARP Gun, a massive piece of artillery based on the design of a 16-inch naval gun. The barrel of the gun measured a staggering 119 feet (36 meters) in length. It was heavily modified to withstand the extreme forces and stresses involved in launching projectiles to altitudes well beyond the Earth’s atmosphere.
The gun used a saboted projectile, a type of shell that was encased in a supportive structure to allow it to fit the barrel. Upon reaching the upper atmosphere, the sabot would separate, allowing the payload to continue its journey. These projectiles could reach heights of 180 kilometers (112 miles), far beyond the Kármán line, which marks the boundary between the Earth’s atmosphere and outer space.
The Barbados HARP Gun represented a breakthrough in artillery technology. The projectiles fired from the gun traveled at speeds of over 2,000 meters per second, and the tests demonstrated the potential for such artillery systems to launch objects into space at a fraction of the cost of rocket-based systems.
Key Goals and Achievements
The overarching goal of the HARP project was to use artillery technology to launch payloads into space for scientific research. Specific goals included:
- High-Altitude Atmospheric Research: By launching instruments into the upper atmosphere and near-space regions, scientists could study phenomena like radiation, cosmic rays, and atmospheric composition.
- Satellite Deployment: HARP aimed to one day use its artillery systems to launch small, low-cost satellites into orbit.
- Cost Reduction in Space Exploration: One of the main promises of the project was that it would drastically reduce the cost of launching objects into space compared to traditional rockets.
One of the HARP project’s most significant achievements was the successful launch of a series of high-altitude projectiles that reached the upper atmosphere. The most famous test took place in 1966, when the gun fired a projectile to an altitude of 180 kilometers, setting a record for the highest altitude ever reached by a gun-fired projectile.
Challenges and Limitations
Despite its initial successes, the HARP project faced several major challenges:
- Technical Limitations: While the gun could launch projectiles to impressive altitudes, achieving the velocities necessary to place objects in stable orbit around the Earth proved far more difficult. Orbital velocities require an object to travel at approximately 7.9 kilometers per second (28,400 km/h), far beyond what the HARP Gun was capable of achieving.
- Funding Issues: As the project progressed, it became increasingly expensive to operate. Despite its potential, the U.S. government’s interest in HARP waned as more traditional rocketry programs, like NASA’s Saturn V, took precedence. By the late 1960s, the project was gradually defunded.
- Military vs. Civilian Uses: The project was initially seen as having both military and civilian applications. However, as the Vietnam War escalated, military funding priorities shifted. Additionally, concerns about the militarization of space also led to a decline in enthusiasm for HARP’s ballistic approach to space exploration.
End of the HARP Project
By 1967, the HARP project had largely wound down. The United States pulled out of the collaboration, and the project lost momentum without the necessary financial backing. While the Barbados site remained operational for a short time after, HARP was officially discontinued in 1968.
Dr. Gerald Bull, the project’s visionary, continued to pursue his dream of space-bound artillery. However, after HARP’s termination, he shifted his focus toward military projects, which eventually led to his controversial involvement in designing superguns for foreign governments, including Iraq during the late 20th century. Bull’s assassination in 1990 is often speculated to be linked to his later military work.
The Legacy of the Barbados HARP Gun
Although HARP ultimately did not fulfill its grand ambitions, its legacy continues to resonate in both space research and military technology. The HARP project demonstrated that artillery systems could be used for high-altitude research and laid the groundwork for later innovations in the field.
Technological Influence
Some of the technology developed for the HARP project, particularly in the areas of projectile aerodynamics and high-velocity ballistics, would go on to influence future military and civilian programs.
Cost-Effective Space Exploration
The fundamental idea of reducing the cost of space exploration through novel methods remains highly relevant. While rockets continue to be the primary method for launching objects into space, the idea of alternative approaches—such as space guns—still inspires new innovations, such as electromagnetic launch systems.
Inspiration for Future Projects
HARP’s ambition to democratize access to space by lowering launch costs has parallels with today’s private space ventures, such as SpaceX, which seeks to make space travel more affordable and accessible.
The Barbados HARP Gun was a bold and visionary experiment, embodying the optimism and daring of Cold War-era space exploration. While it did not achieve all its goals, its legacy as a technological milestone remains significant. The project pushed the boundaries of what was considered possible with artillery, paving the way for future research and inspiring new generations of scientists and engineers to think outside the box when it comes to space exploration.
HARP may have been a product of its time, but its spirit of innovation continues to influence the quest to reach beyond the Earth’s atmosphere.
